Bit V14D135075 V-14 (3,5x30)-No.1-(6)-75
Order no.
103002686
Category:
Availability:
on stock
on stock
Price:
4,75 EUR / without VAT
5,75 EUR / incl. VAT
5,75 EUR / incl. VAT
Description

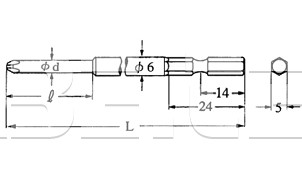

- Cross bit for Uryu, Yokota, Hios, Japan pneumatic, Hitachi, Max, etc. screwdrivers,
- tip number No. 1,
- shank length (Ød x l) 3,5 x 30l mm.
- Shank diameter (D) 6 mm,
- total bit length (L) 75 mm,
- names of other manufacturers U-41,
- sold by the pack (1 pack = 10 pieces).
Examples of use:
| Uryu | US-3.5A /4/30/40/50L/20TA/30TA/40TA/40LTA/LT20A/LT30A/4PB |
|---|---|
| Yokota | YD-2.5/3/4/3.5HL/4HL/3.5HSS/400/400C/400SC/400SCH |
| Hios | VZ-1512/VZ-1820/VZ-3007/VZ-3012 |
| Japan pneumatic | SD-4A |
| Nitto kohki Delvo |
DLV-7120/ 7122/ 7130/ 7132/ 7140/ 7142/ 7220/ 7222/ 7230/ 7231/ 7232/ 7241/ 7242 DLV-8120/ 8122/ 8130/ 8132/ 8140/ 8142/ 8220/ 8222/ 8231/ 8232/ 8241/ 8242/ 8150, DLV-3121/ 3131/ 3141/ 3151 atd. |
| Hitachi | WT-3/WT-4/WT-5 |
| Max | AT-D35/AD-D5 |
Package contents
-
The package contains 10 pcs.
Technical data (6)
Technical data for comparison Bit V14D135075 V-14 (3,5x30)-No.1-(6)-75
| Name of value: | Value |
|---|---|
| Bit attachment | HEX 5.0 |
| Tip type | křížový PH1 |
| Stem length | 3,5 x 30l mm |
| Tip number | No. 1 |
| Shaft diameter | 6 mm |
| Total bit length | 75 mm |
Download (1)
Here you can download additional documents Bit V14D135075 V-14 (3,5x30)-No.1-(6)-75
Kompletní katalog bitů (1939 kB)
