ESD Megaohmmeter Pocket Meg Standard

Order no.
201100228
Manufacturer:

Category:

                    Resistance meters

            Availability:

						on stock

                    Price:

                                                                                208,44 EUR /  without VAT

                                        252,21 EUR /  incl. VAT

předchozí

další ESD Megaohmmeter Pocket Meg Standard

Product variants
Technical sheet

◄ ►

Pocket Meg Standard is a checking device designed for measuring surface resistance and resistance to ground at antistatic workplaces in dedicated area according to the EN 61 340-5-1 standard.

The instrument is intended for fast orientation measurement of desktop, floor and other materials. The instrument indicates value of measured resistance by means of LEDs representing order of magnitude in ohms.

The diodes are colour distinguished so that green LEDs represent resistance values of ESD conductive and dissipative materials, red LED represents higher resistance value, and yellow LEDs represent lower values. Red LED indicates instrument operability and sufficient battery voltage immediately after the measuring button pressing.

Highlights

Instantaneous information on measurement.
Simple operation.
Low consumption.
Favourable price.

Technical parameters

Dimensions: 145 × 80 × 36 mm.
Weight: 250 g.
Power supply: Battery 9 V.
Consumption: 12 mA max. at test.
Operating temperature: 0 to 55°C.

Measuring ranges

LED	YELLOW	YELLOW	GREEN	GREEN	GREEN	GREEN	RED
VALUE	< 10⁵Ω	< 10⁶Ω	< 10⁷Ω	< 10⁸Ω	< 10⁹Ω	< 10¹⁰Ω	> 10¹⁰Ω

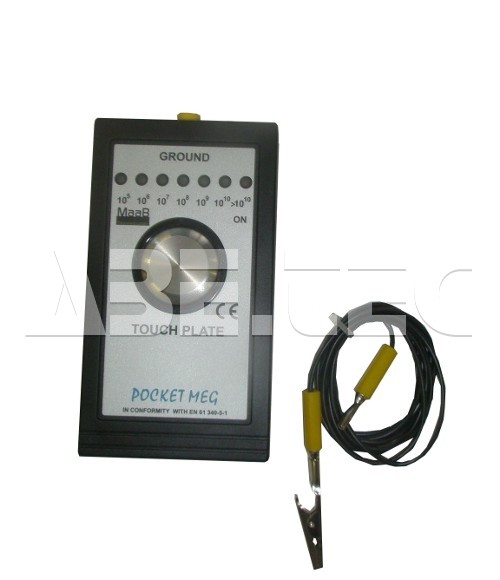

Pocket Meg Standard is embedded in a plastic box. Measuring electrodes are situated from below the instrument, socket for connecting to ground is on the front panel of the instrument. Measuring pushbutton and indicators for test and battery condition evaluation are located on the upper panel. The instrument is delivered with measuring cable and crocodile clip for connecting to ground.
