MAP 1, Assembly ESD workplace ESD mat for table and floor + accessories
Order no.
201103066
Category:
Availability:
on stock
Price:
105,64 EUR / without VAT
127,82 EUR / incl. VAT
127,82 EUR / incl. VAT
Description
- It is used as a stable antistatic workplace.
- It is designed for easy and quick connection to the grounding system.
- Corresponds to EN 61 340-5-1 standard.
- The mat for both the work surface and the floor is made of one type of mechanics and heat-resistant antistatic rubber NC-0914.
- The internal connection of the terminals is via protective resistors of 1 MΩ.
- 3 connection sockets.
- Surface resistance to ground 106 - 108Ω.
- Dimensions of the table mat 800 x 600 mm.
-
Dimensions of the floor mat 1500 x 1000 mm.
Package contents:
- groundable antistatic work surface with two pressed-in 10 mm (male) pins,
- groundable antistatic floor mat with two 10 mm pressed-in pins (male),
- 2 x grounding cable to the mat (female),
- earthing box with three connection sockets,
- protective bracelet,
- grounding fork,
- (the table is not included!!)

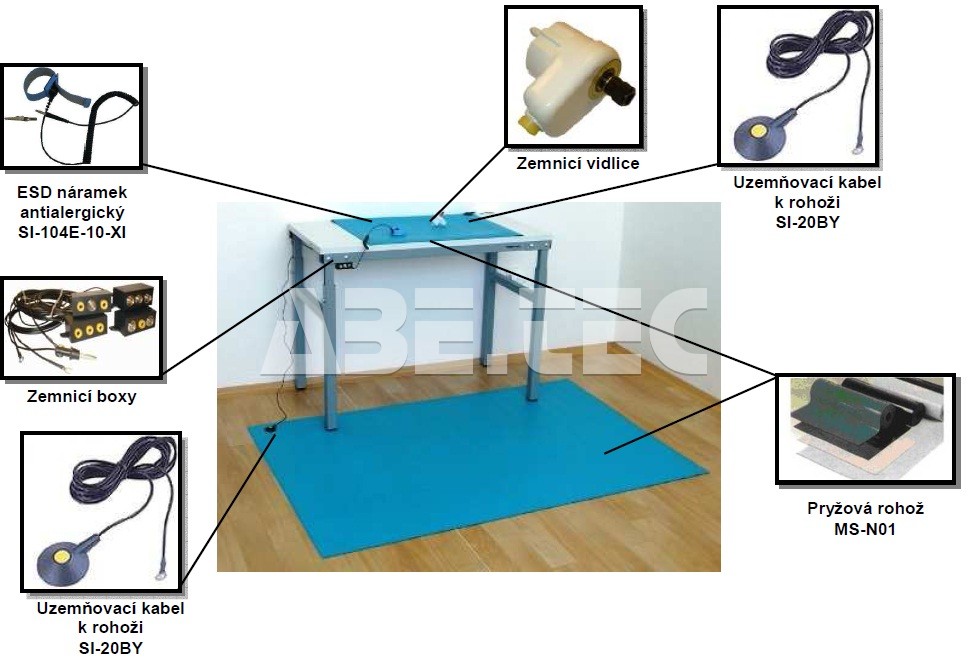

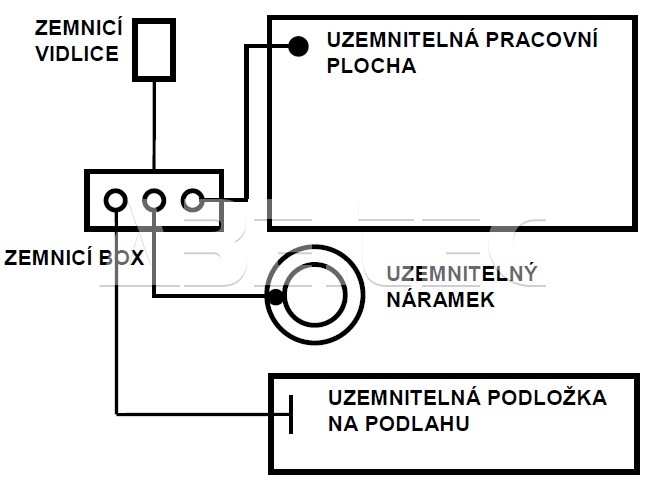

It consists of a groundable antistatic mat for the work surface and the floor, a grounding box, a protective bracelet and a grounding fork.
Package contents
- groundable antistatic work surface with two pressed-in 10 mm (male) pins,
- groundable antistatic floor mat with two 10 mm pressed-in pins (male),
- 2 x grounding cable to the mat (female),
- earthing box with three connection sockets,
- protective bracelet,
- grounding fork,
-
(the table is not included!!)

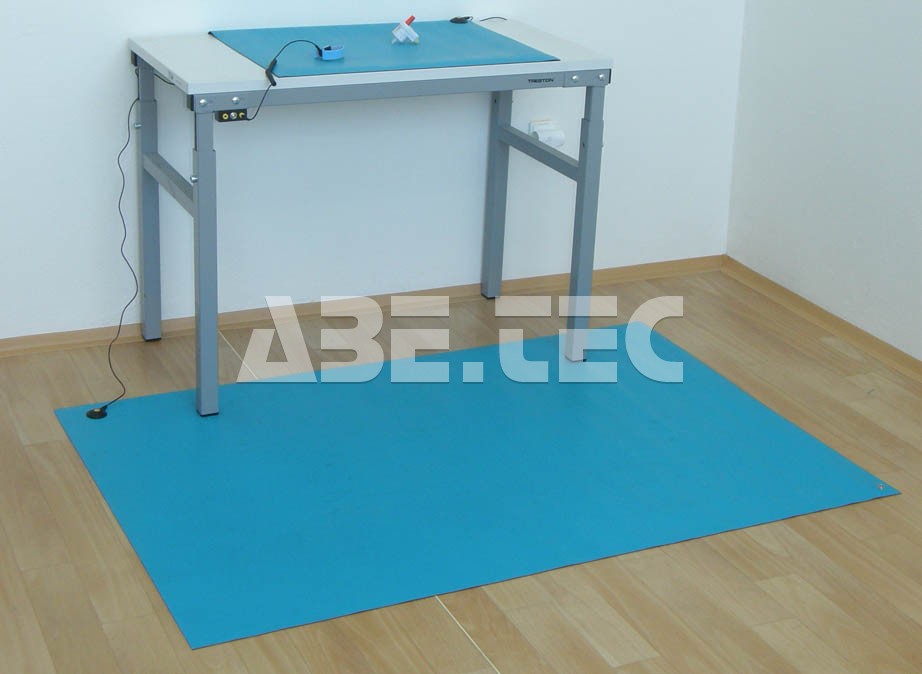

Photogallery (3)
