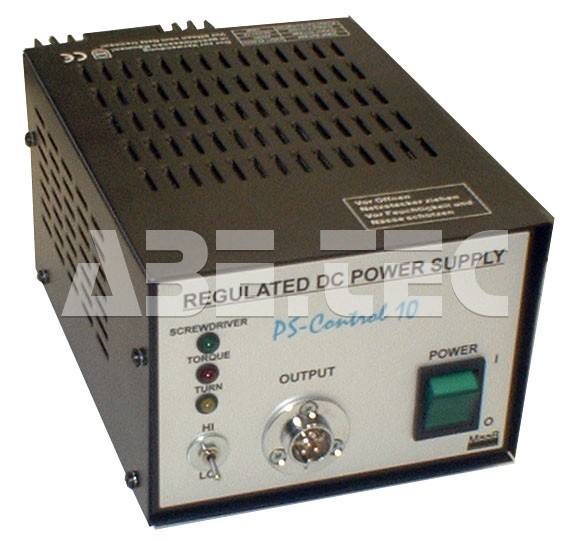

PS-Control 10 power supply

• Power supply: 230 VAC ± 10%, 50 Hz.
• Working temperature: 10 – 35 °C.
• Working air humidity: < 85% RH, non-condensing.
• Dimensions: 245 x 146 x 111 mm.
• Speed control: HI – LO.
• Output current constant: 3 A.
• Output current peak: 5 A.
• Indication of the connection and idle state of the screwdriver: green light.
• Operation indication: yellow light.
• Indication of reaching the set torque: red light.
• The source is designed in a metal box.
• The power supply and fuse are on the rear panel.
• The output connector and indicator lights for connection, operation and torque are located on the front panel.
• Controls - main switch and speed switch - are also on the front panel.
• The output voltage is stabilized with the possibility of regulation in two stages.
• The output current is switched by a thyristor.

The source is intended for powering HIOS, Atlas Copco and Himax industrial torque screwdrivers. Allows control of rotation speed in two stages. It has an indication of the screwdriver running and reaching the set torque. For a specific type of screwdriver, it is necessary to test its correct function. It is especially suitable for HIOS screwdrivers of the CL, CLS and Alpha series.
