Product variants
Technical sheet
Description
- Service antistatic workplace.
- It is used as an easily portable antistatic workplace.
- It is designed for easy and quick connection to the grounding system.
- Corresponds to EN 61 340-5-1 standard.
- The mat has a standard size of 800 x 600 mm, other sizes are also possible upon agreement.
- The pad is made of mechanically and thermally resistant antistatic rubber NC-0914.
- The internal connection of the terminals is through protective resistors 1MΩ.
- Dimensions: 800 x 600 x 2 mm.
- Color green.
- Number of sockets: 3.
- Rg: 107 - 109 Ω.

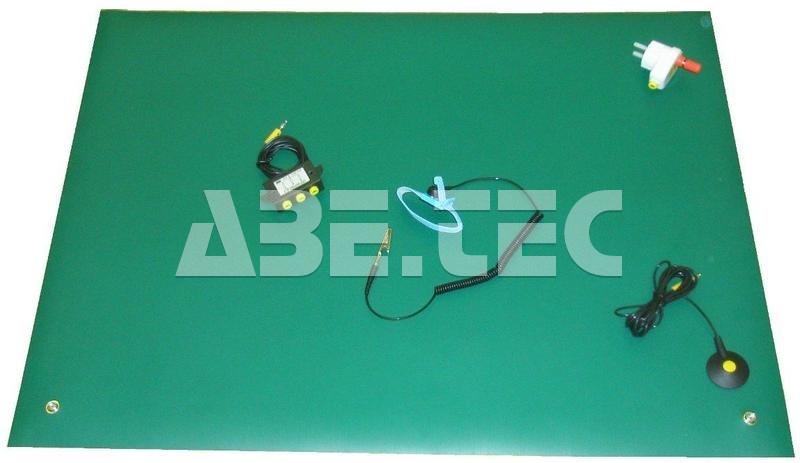

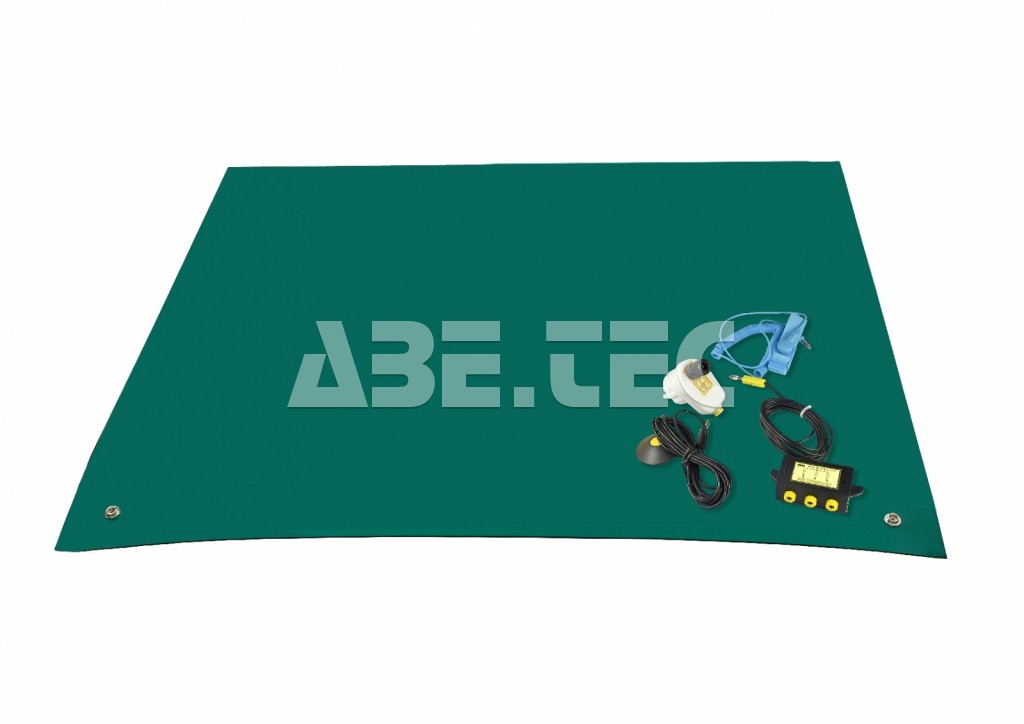

It consists of a groundable antistatic mat for the work surface, a grounding box, a protective bracelet and a grounding fork.

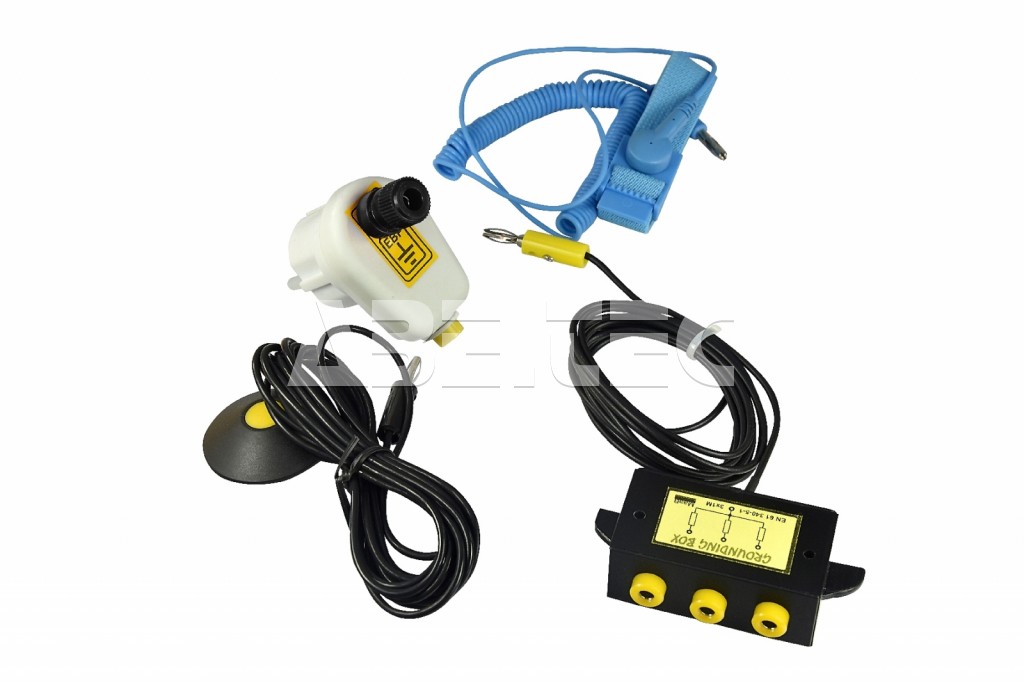

Package contents
- ESD pad - green
- Ground cable
- ESD bracelet
- ESD box
-
Ground plug
