Stabilised DC power supply for two screwdrivers PS-Control 5.2

The power supply is designed for feeding HIOS industrial torque screwdrivers. It enables rotation control in two stages. It is provided with indication of screwdriver operation and set torque attainment. For particular screwdriver type, its correct performance must be tested.

The power supply is particularly appropriate for all HIOS screwdrivers.

Highlights

1. Simple control.
2. Mechanically resistant structure.
3. Capability of speed control in two stages.
4. Indication of screwdriver operation and set torque attainment.
5. Favourable price.

Technical parametres

• Power supply: 230 VAC ± 10 %, 50 Hz.
• Operating temperature: 10 – 35 °C.
• Operating air humidity: < 85 % RH, w/o condensing.
• Dimensions: 245 × 146 × 111 mm.
• Speed control: HI - LO.
• Steady output current: 3 A.
• Peak output current: 5 A.
• Operation indication: Yellow indicator.
• Set torque attainment indication: Red indicator.

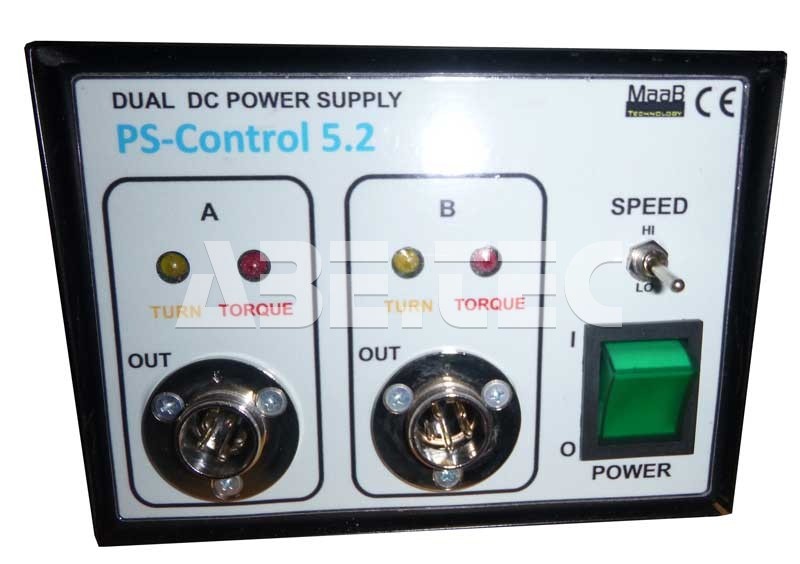

The power supply is situated in a metallic box. Feeding lead and protective element are located on rear panel. Output plugs and indicators of operation and set torque attainment are situated on the front panel. Control elements – main switch and speed switch – are also on front panel. Output voltage is stabilised with the possibility of control in two stages. Output current is switched via relay.
