Torx bit V-17T (2x15l)-T-5-(6.35)-75
Order no.
103000102
Category:
Availability:
4 weeks
direct import from Japan, we usually stock the goods within four weeks from the date of order
Price:
7,32 EUR / without VAT
8,86 EUR / incl. VAT
8,86 EUR / incl. VAT
Description

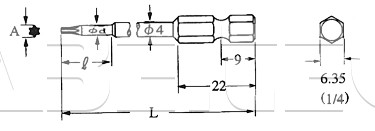

- Torx bit for Uryu, Hios, FujiKuki, Kanon, etc. screwdrivers,
- tip number T-5 (A=1,4),
- type HEX 6.35,
- shank length (Ød x l) 2.0 x 15l mm.
- Shank diameter (D) 6.35 mm (1/4"),
- total bit length (L) 75 mm,
- minimum order quantity is 5 pcs.
Examples of use:
| Uryu |
US-5/ 50/ 45W/ 50W/ 450WB/ 5W/ 6W/ 5PB/ 10TB/ 20TB/ 30TB/ 40TB/ 40LTB/ 50TB US-50T/ 50TP/ LT10B/ LT20B/ LT30B/ LT40B/ LT50B/ LT60P/ 3.5MA/ 4MA/ 5MA US-4PMA/ 5PMA/ 65SPW/ 350W/ 5PW/ 350PW/ U-4000/ 501D/ 610D/ 700D, UW-6SSLD/ 6SSD/ 6SSHD/ 6SD/ všechny ostatní UW - UX typy šroubováků |
|---|---|
| Hios | F - 7000/ 9000/ DL-15/ DL-20/ DCD-100 |
| FujiKuki | FW série/ FPW série/ všechny FD série |
| Kanon | 20.30, 50.100 LTDK/ 10.20.50 DPSK |
| Yokota |
YD-2.5/ 3.5/ 4A/ 4.5A/ 4.5LA/ 5A/ 5WA/ 6A/ 6WA/ 600A/ 400A/ 400CA/ 500 SCA, YD-3.5PZ/ 4.5PA/ 6PA/ 8PZ/ YW-6PA/ 6PDA/ YHW-4A/ V-60A/ YD-400SCA , YD-5PHCA/ 5WAZK/ 6WAZK/ 3.5PZ/ 4.5PZ/ 4.5PT/ 6PZ/ 6PT |
| Nitto kohki Delvo | DLV-1130/ 1140/ 1141/ 1150/ 1161/ 1171, DLB-7251/ 7252/ 8150/ 8151/ 8152/ 8251/ 8252 atd., DLL-9020 - tento bit lze použít I pro dvojitý bit |
| Yutani Tekko | D-6SSBL/ D-6SBPL |
| Japan pneumatic | NPW-450-DXO/NPW-550-DXO |
| Ohmi Seiki | BH-3/ BH-4A (držák bitu pro rázový klíč) |
| Tonichi | U série (U-100S/ U3/ U3V/ OFF) LTDH/ RTDH/ RTD/ NTD/ FTD série (80 FTD/ 160 FTD OFF) |
Package contents
Torx bit V-17T (2x15l)-T-5-(6.35)-75
Technical data (5)
Technical data for comparison Torx bit V-17T (2x15l)-T-5-(6.35)-75
| Name of value: | Value |
|---|---|
| Bit attachment | HEX 6.35 (1/4") |
| Tip type | torx |
| Stem length | 2 x 15l mm |
| Shaft diameter | 6,35 (1/4") mm |
| Total bit length | 75 mm |
Download (1)
Here you can download additional documents Torx bit V-17T (2x15l)-T-5-(6.35)-75
Kompletní katalog bitů (1939 kB)
Photogallery (2)
See the photos Torx bit V-17T (2x15l)-T-5-(6.35)-75
