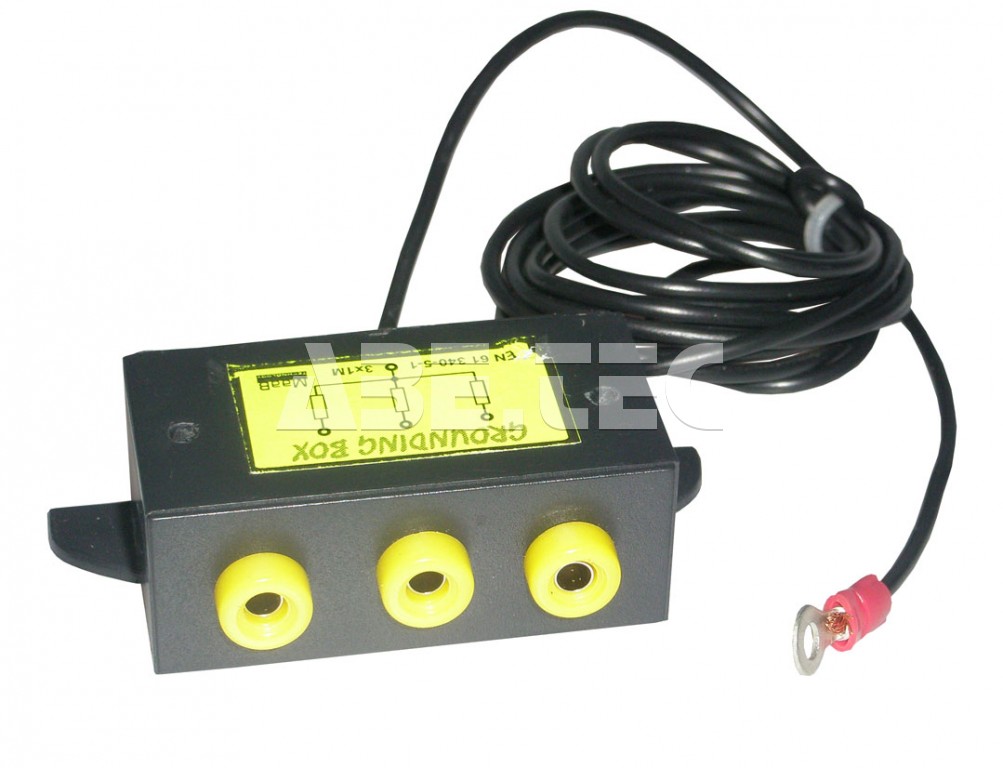

ZB 3Z/0D/A/1M Earthing box

• Grounding box with three banana sockets, cable eye M4, internal resistors 1MΩ.
• Corresponds to EN 61 340-5-1 standard.
• Dimensions: 82 x 37 x 24 mm.
• Outlet length: 2.5 m.

Grounding boxes are designed for easy and quick connection of grounding bracelets at assembly workplaces in EPA designated areas. They can be used for both permanent and service workplaces.

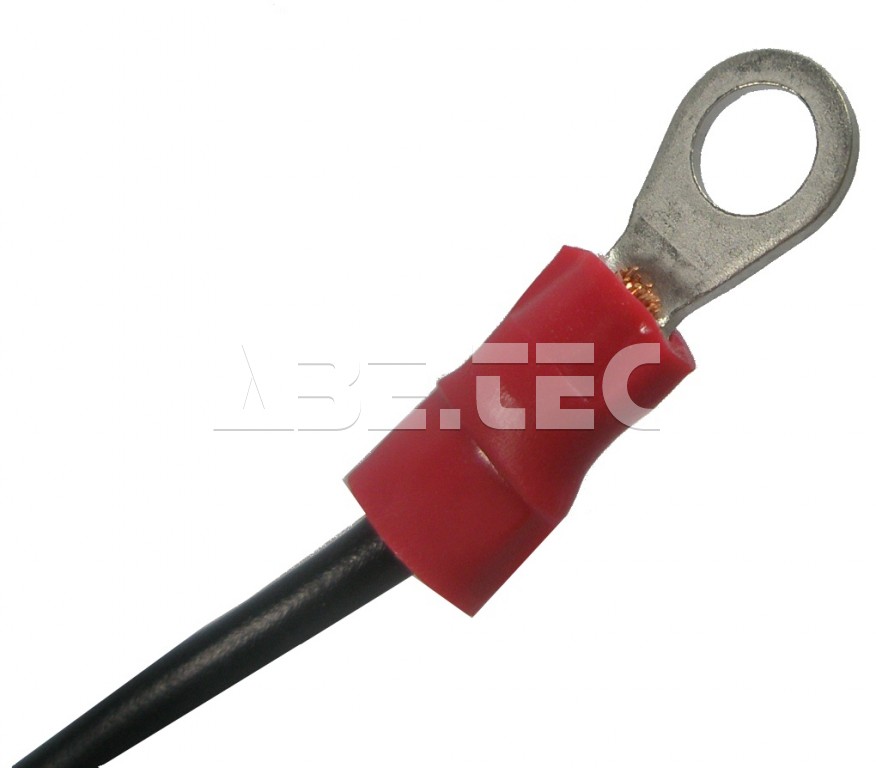

The earthing box consists of a plastic box, on the front of which there are three connection points. A 2.5 m long outlet comes out of the box, the end of which is a cable eye. The internal connection of the terminals is either via protective resistors 1 MΩ or direct. Easy mounting with two M3 screws or Ø 3 mm screws on the lower working surface of the table or shelf. The plastic cover is reinforced with posts against possible overstretching.

Explanation of the name (3Z/0D/A/1M)

1. position: number of banana jacks 4 mm 1 - 3,
2. position: number of patents 10 mm 1 - 3,
3. position: termination A - cable eye for M4, B - banana, C - open cable eye M5, D - patent 10 mm,
4. position: protective resistor 1M - 0M, it is also possible without a resistor, i.e. 0MOhm as a custom solution.

If you require a combination that is not listed here, it is possible to manufacture a grounding box according to your requirements. Send a request by email or call.
